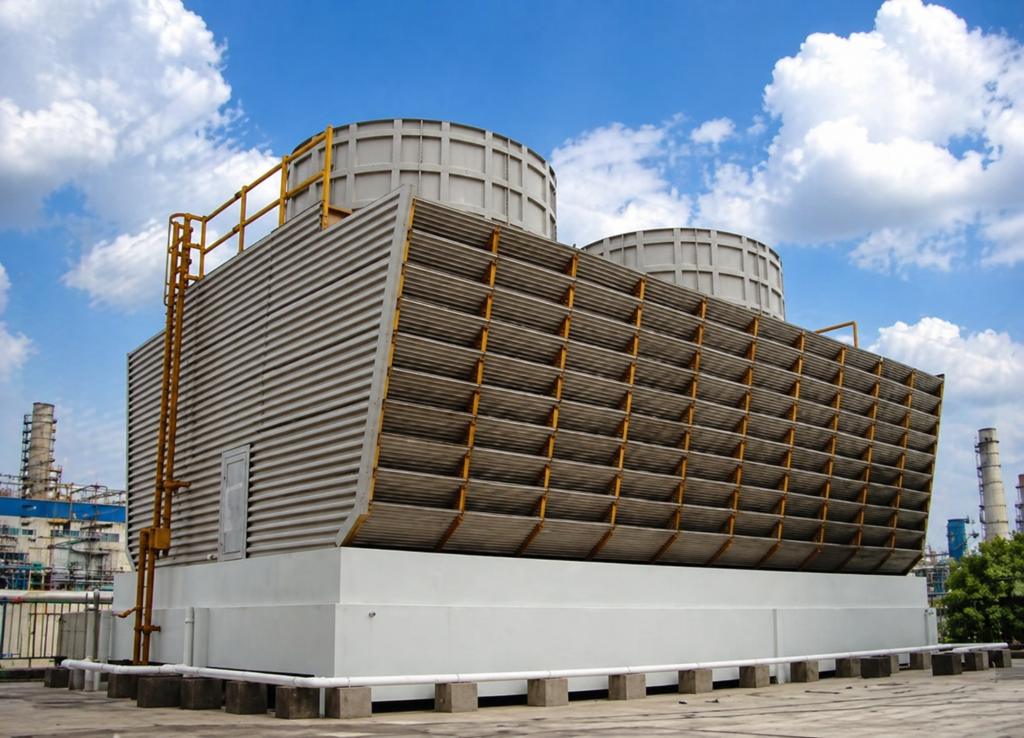

WDF Series Induced Draft FRP Cooling Tower - 5 TR to 1500 TR
WDF/WSF Series Cooling Towers
The Wetpoint WDF Series is an induced draft FRP cooling tower manufactured in Gwalior, India, available in capacities from 5 TR to 1500 TR. Designed for counterflow heat exchange, it delivers uniform water distribution, low power consumption, and long service life – making it the preferred industrial cooling tower for power plants, chemical processing, pharmaceutical, HVAC, and DG set applications across India.
- Designed for maximum service life dependability and performance
- Readily adaptable for industrial processes, DG sets & Air conditioning
- Designed for uniform water distribution and optimal heat transfer
- Consumes minimum power due to high efficiency of Axial flow FRP fan sets.
Key Features of the WDF Series Induced Draft Cooling Tower
- Induced draft counterflow design for maximum thermal efficiency and service life
- Readily adaptable for industrial cooling in power plants, DG sets, HVAC, and process industries
- Uniform water distribution via gravity-fed polypropylene target nozzles - no diffusion deck required
- Low power consumption through high-efficiency axial flow FRP fan sets with aerodynamic aerofoil blades
Industries & Applications - Where WDF Series Cooling Towers Are Used
The WDF Series serves industries where reliable, continuous cooling is critical. Its FRP construction handles chemically aggressive environments that metal towers cannot.
Power Plants – Cooling condenser water and auxiliary equipment in captive power plants and co-generation units.
Chemical & Petrochemical – Process cooling in reactors, heat exchangers, and distillation columns where corrosion resistance is essential.
Pharmaceutical Manufacturing – Precise temperature control for reaction vessels, clean room HVAC, and utility cooling.
DG Set Cooling – Rejecting heat from diesel generator sets in hospitals, data centres, and industrial facilities.
HVAC Systems – Central plant cooling for commercial buildings, malls, airports, and large office complexes.
Steel & Metal Industries – Cooling furnace water, rolling mill equipment, and hydraulic systems.
Food & Beverage – Process cooling in breweries, dairy plants, and food processing units where hygiene and reliability are non-negotiable.
Cement & Mining – Heavy-duty cooling for compressors, crushers, and kiln auxiliary systems.
Whether you need a 5 TR unit for a single DG set or a 1500 TR system for a large process plant, the WDF Series is engineered to perform.
Spares and Components of WDF/WSF Series Cooling Towers:

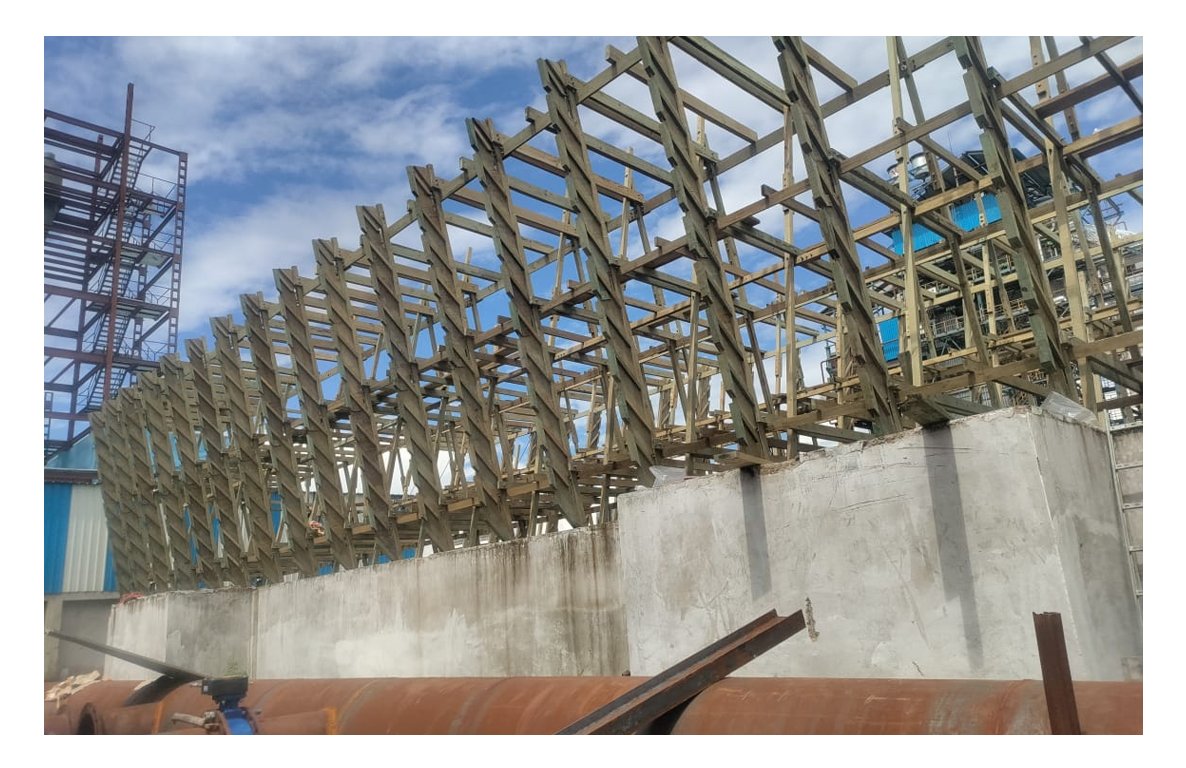

Structure
The structure of the cooling tower made of the best grade of pinewood pressure impregnated by chromate copper arsenate to prevent it from any bacterial attack. It is bolted and designed for 30 pounds/Sq ft wind load.

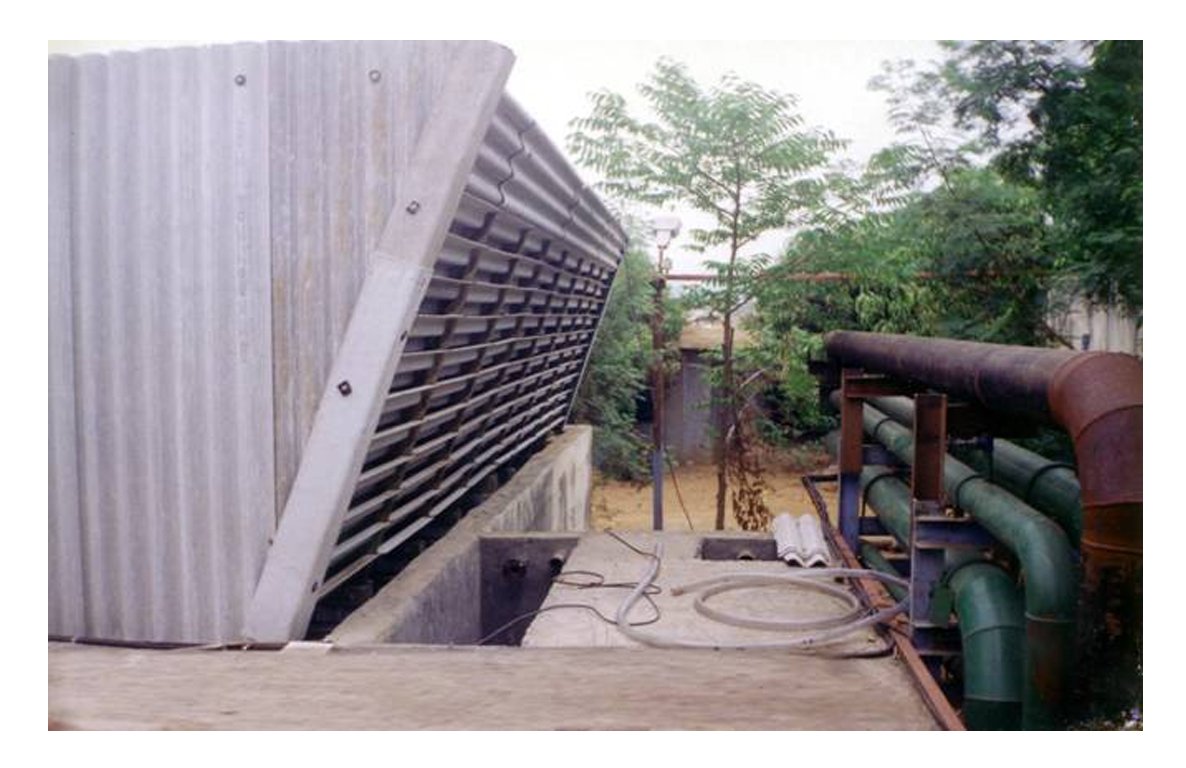

Louvers & Casing
Corrugated asbestos cement board casing is applied vertically. Joints are lapped and sealed for water tightness. Corners are covered with FRP corner rolls. Corrugated asbestos louvers are located on wide centres on the sloping louvered walls. They are supported by tower columns and louver support. (FRP casing and louvers can be provided if desired)

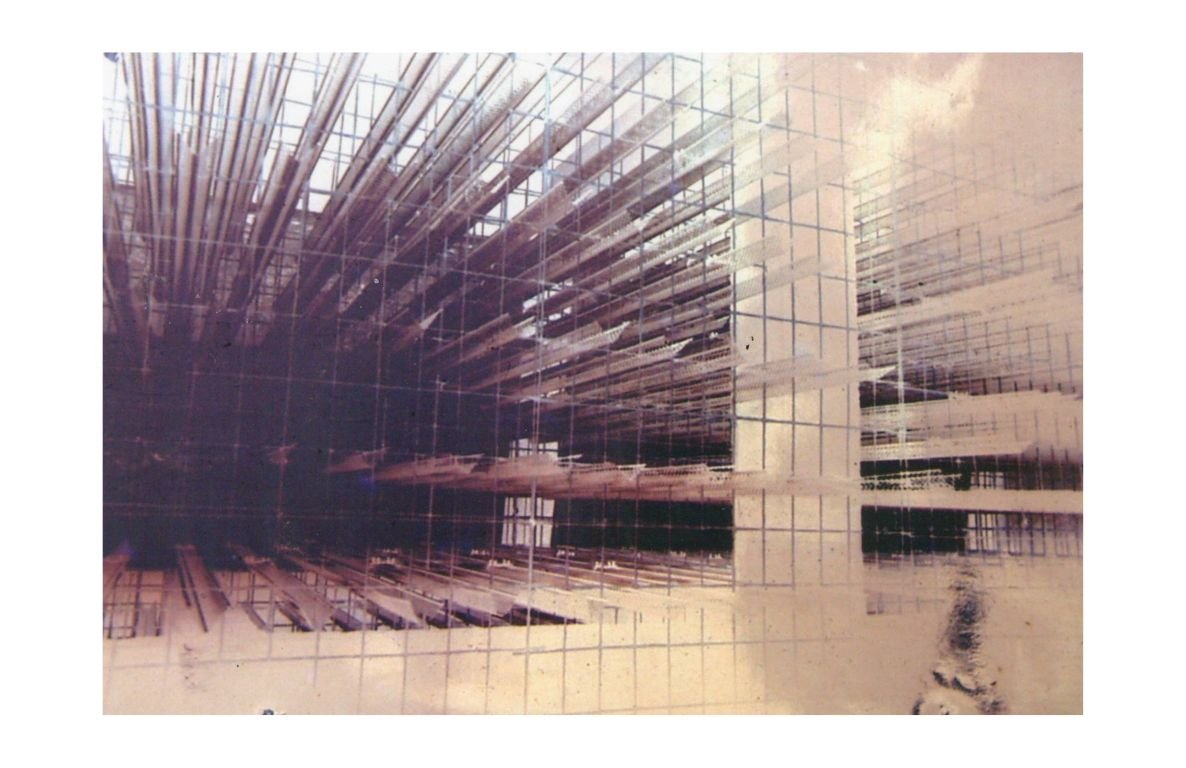

Internal Fills
Splash bars are made of preservative-treated wood with a choice of PVC ‘V’ type or ‘C’ type bars.
Hot Water Distribution System
The hot water distribution system is of open gravity type and is constructed from boiling water-proof marine plywood with polypropylene target nozzles.

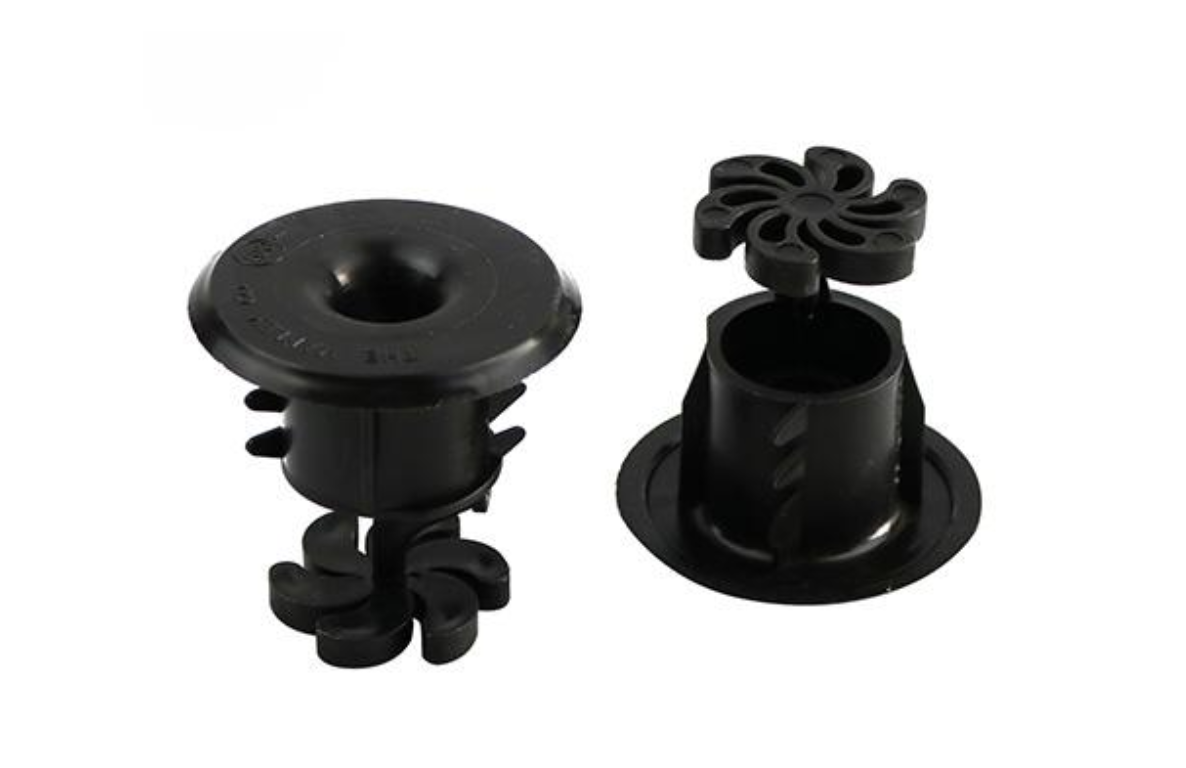

Target Nozzles
The target nozzles used in the hot water basin are specially designed to deliver uniform water distribution and are highly resistant to temperature and weathering damage. Their use eliminates the need for a separate diffusion deck to provide complete water distribution throughout the fill area. These nozzles operate under gravity.
Drift Eliminators
Specially designed eliminators are made in replaceable modules. Each module can be easily removed, cleaned, and reinstalled quickly. Eliminates drift loss to less than 0.1%.
Fan Drive System

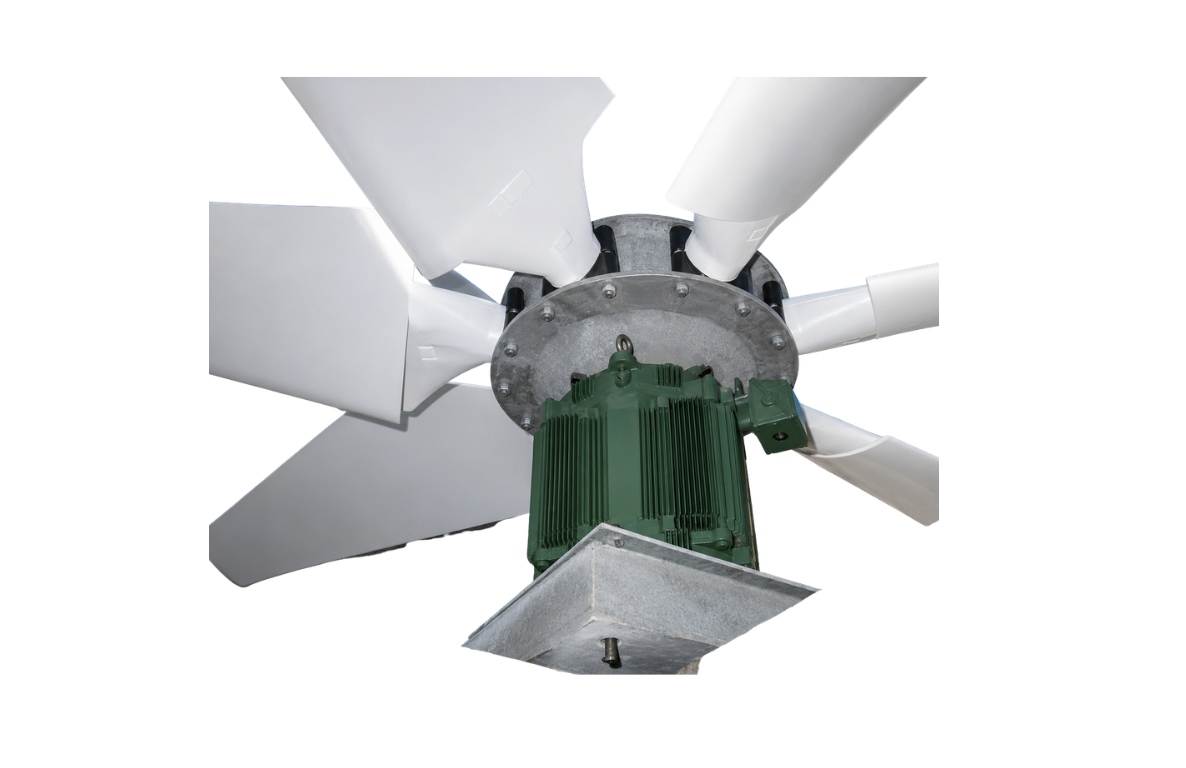

Direct Driven
Fans in smaller models are direct driven on lower RPM motors which are mounted on an MS galvanized fan cylinder covered by FRP segments.
Gearbox Driven
Fans in bigger models are driven by spiral bevel gearboxes of proven design with maximum efficiency. These are mounted on mechanical equipment supports specially designed from hot tubular steel and are hot-dipped galvanized.
Fan
Our cooling towers are fitted with FRP Axial Flow fans with aerodynamic efficiency and significant saving in higher operating cost.

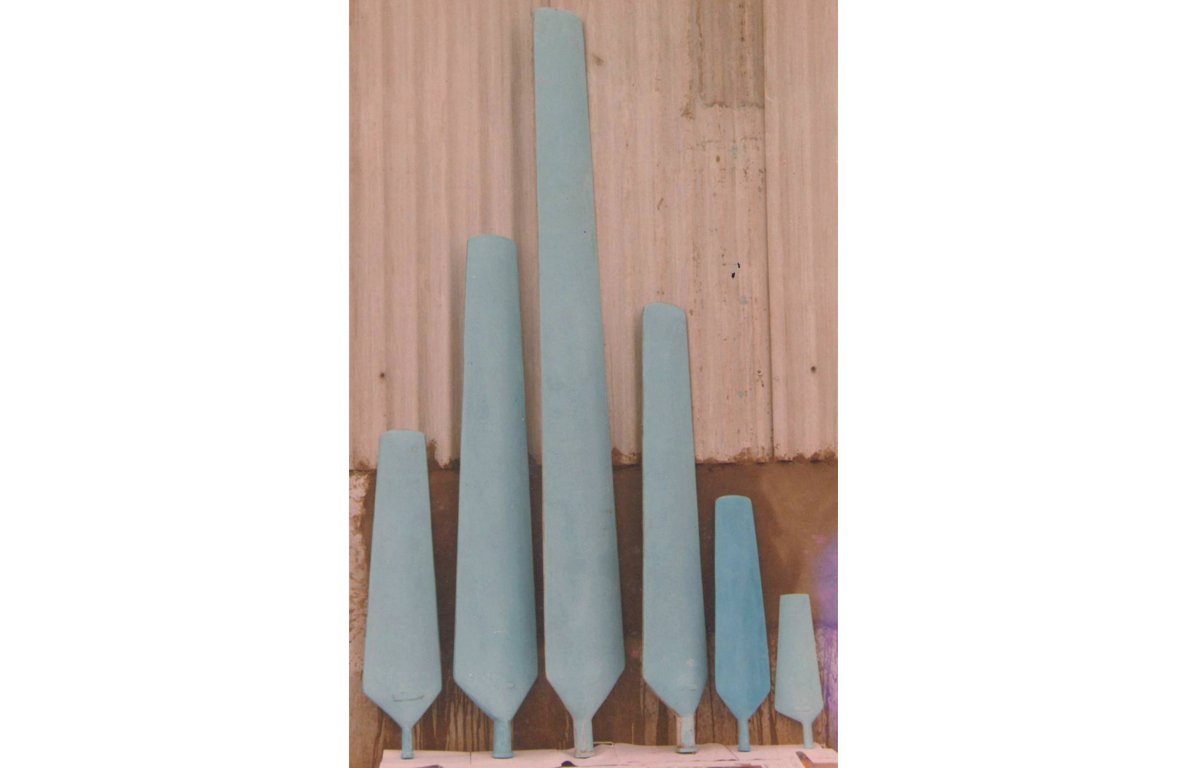

Fan Blades
Fan blades are made up of fiberglass reinforced epoxy resin. These blades are hollow in construction and have been designed with the most efficient aerofoil section. Optimum aerofoil section thickness has been selected to achieve maximum lift and minimum drag coefficient.

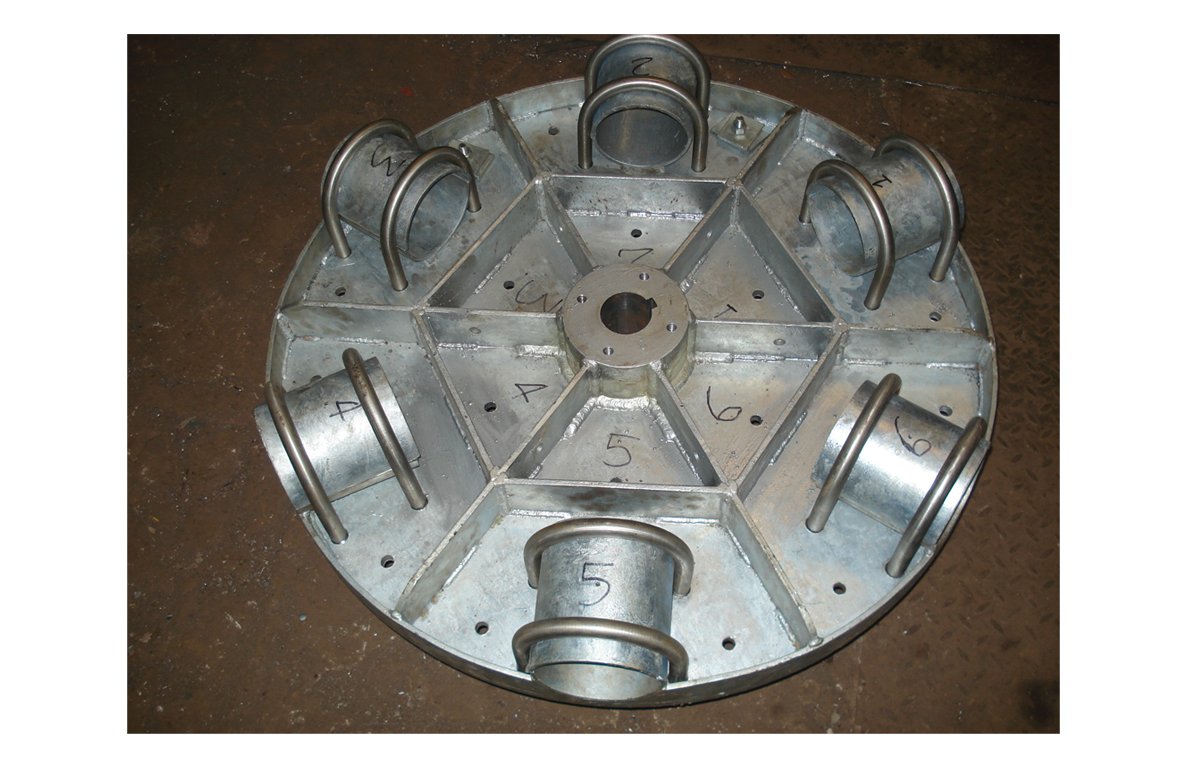

Fan Hub Assembly
Fan hub assembly is simply designed for easy installation & minimum maintenance. It is dynamically balanced and made of stainless steel plates, aluminum clamp blocks, cast iron bush, and all hardware in stainless steel for resistance against corrosion.

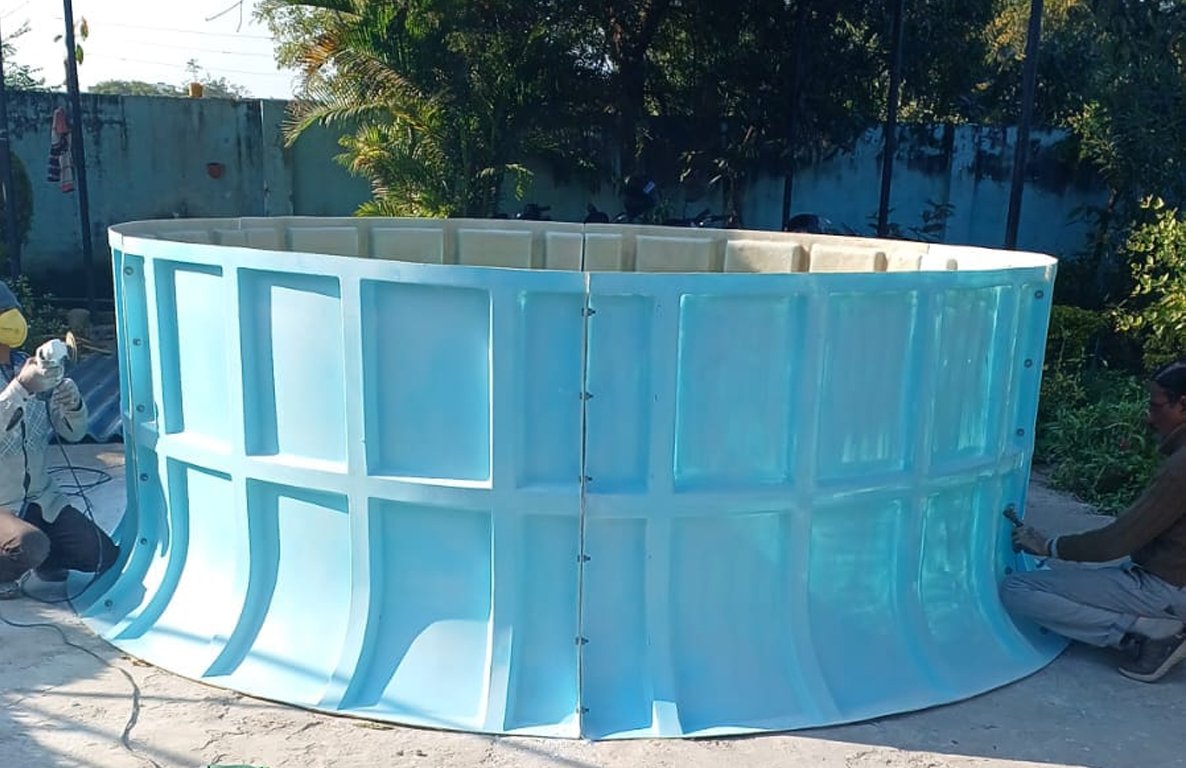

Fan Cylinder
Our cooling towers are fitted with elevated fan cylinders in HDG steel or FRP material, which enhances air movement, completely eliminating the chance of re-circulation of exhaust air and thereby increasing cooling tower efficiency.

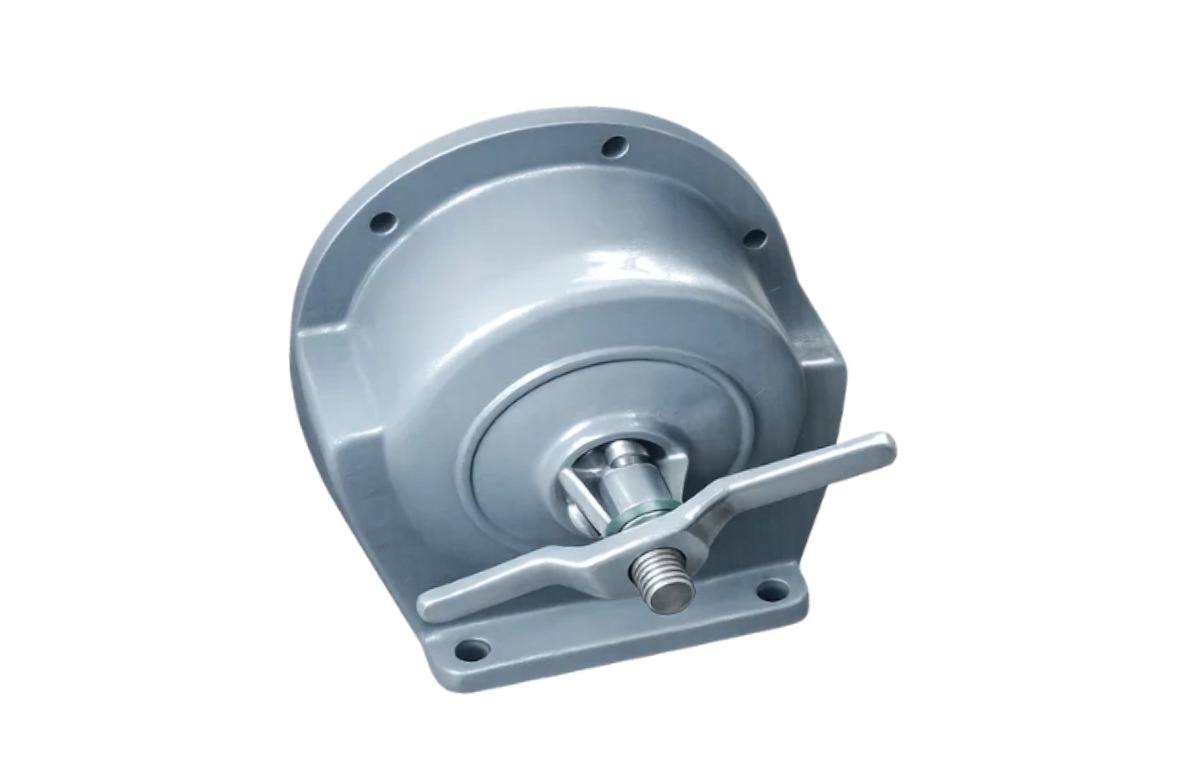

Flow Control Valve
Flow control valves are of heavy-duty cast iron body and stainless steel valve stem ensuring long life and low maintenance. Oversized valve body delivers best velocity dissipation for even water distribution.

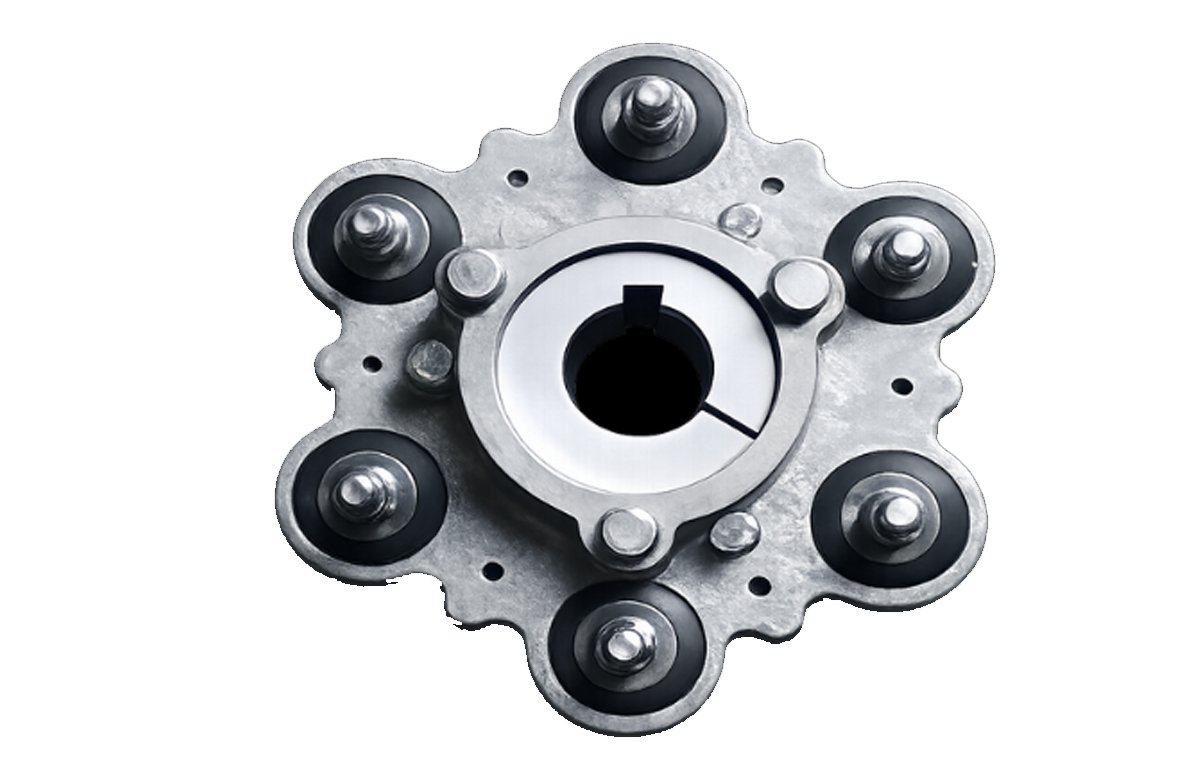

Coupling
Couplings are of a heavy cast-iron body and stainless steel and bushes are made of Nylon with HDG Hardware.

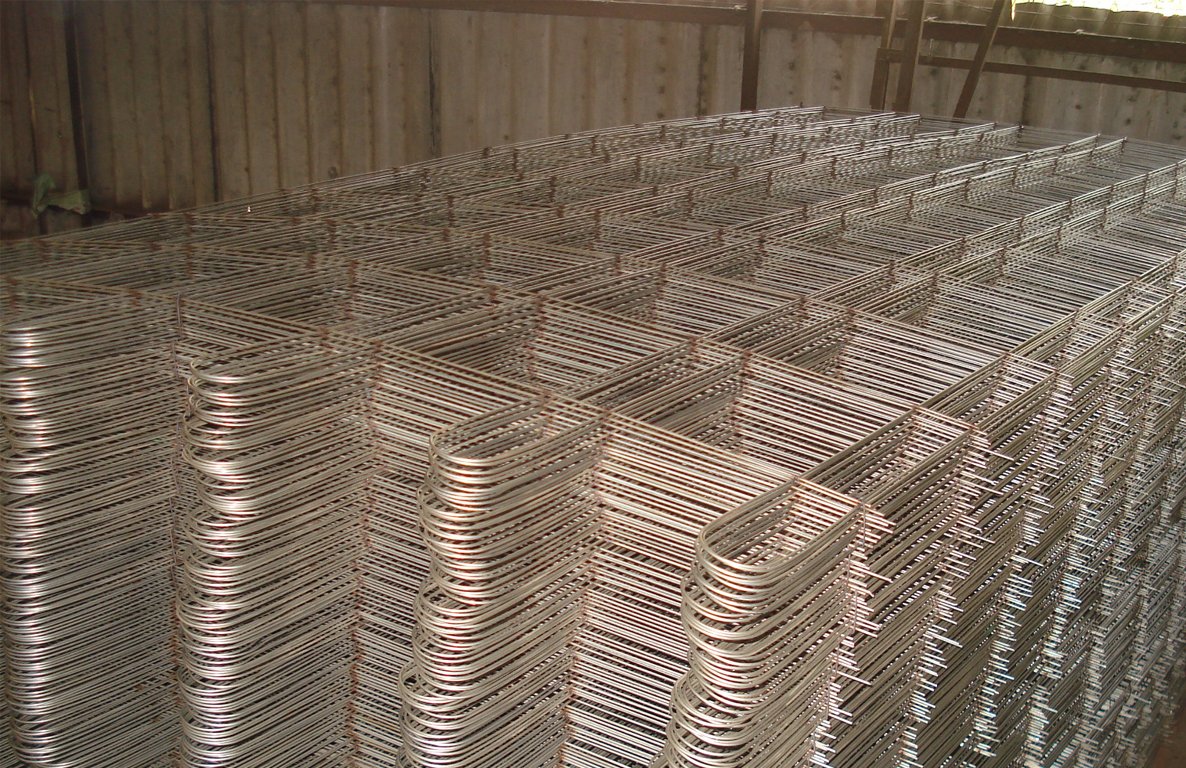

Fills Support System
Grid System
Fills splash bars are supported on SS-304 grids which assure positive and permanent positioning and allows splash bars to expand and contracr without crcking, wraping or sagging. Close-packed fills provides maximum wetted surface and water breakup.
Tray System
Our cooling towers are also fitted with "Foster-Wheeler" stake type fills arrangement, comprising of splash bars fixed with transverse stringers, making the fill into removable trays. This system makes an excess of wet surface area and eliminates any chance of fill collapse.
Mechanical Equipments & Accessories
All mechanical equipment used is specially designed and manufactured for cooling tower application. Multiblade fans are of FRP for smooth & energy efficient operation. Adjustable pitch blades allow maximum utilization of applied horsepower.
Structural Plates & Fasteners
The entire cooling tower structure is held by SS-304 U & L plates, bolted with hot-dip galvanized nuts and bolts, along with SS-304 screw shank nails.
Industries & Applications - Where WDF Series Cooling Towers Are Used
We have been manufacturing cooling towers since 1996 – not as a side product, but as our only business. That focus shows in every WDF unit we build.
Custom-engineered, not catalogue-picked. Every WDF Series tower is sized to your actual wet bulb temperature, cooling range, and site conditions – not a standard catalogue model forced to fit.
FRP construction throughout. Structure, casing, fan, fills, and drift eliminators are all FRP – no metal parts in the air and water stream means no corrosion, no rust staining, and a longer service life.
Proven across India’s toughest industries. WDF Series towers are installed at BHEL, Tata Motors, Godrej, and 100+ other industrial clients across 50+ cities.
After-sales support and genuine spares. We stock all WDF Series spares – fills, nozzles, drift eliminators, fan blades – from our Gwalior facility. No waiting for third-party suppliers.
IS 9668 compliant manufacturing – all cooling towers are designed and tested per Indian Standards.
Get a Free WDF Series Cooling Tower Quote
Tell us your requirement and we’ll get back within 24 hours with a detailed proposal – no obligation, no generic catalogue pricing.
Frequently Asked Questions About WDF Series Cooling Towers
The WDF Series is an induced draft, counterflow FRP cooling tower manufactured by Wet Point Aqua Equipments. It uses an axial flow fan at the top to draw air upward through the fill, cooling the hot water flowing downward. Available from 5 TR to 1500 TR, it is used in industrial, HVAC, and power plant cooling applications.
WDF Series cooling towers are available from 5 TR (Tonnes of Refrigeration) to 1500 TR, covering small industrial units to large power plant and chemical process cooling requirements. Custom capacities beyond 1500 TR are available on request.
In an induced draft cooling tower like the WDF Series, the fan is located at the top of the tower and draws air through the fill. In a forced draft cooling tower, the fan is at the base and pushes air in. Induced draft towers are quieter, more efficient, and less prone to recirculation, making them suitable for most industrial and HVAC applications.
WDF Series cooling towers are used in power plants, chemical processing, pharmaceutical manufacturing, steel and metal industries, food and beverage production, HVAC systems, and DG set cooling across India.
